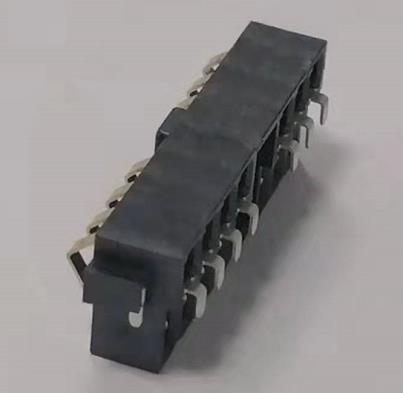

2.5mm PITCH 7P SPRING BATTERY 7.6mm H
Electrical
Voltage: 20 Volts AC,DC (per pin)
Current: 3A DC
Contact Resistance: 40 mΩ max.
Dielectric Withstanding Voltage: 100V AC Min.
Insulation Resistance: 100MΩ min.
Operating Temp. : -40℃ ~ +85℃
Specification(Abbreviation)
Family: Blade Female
Pitch (mm):2.5mm
PCB Mounting:DIP
Operation Direction: S/R R/A
Product Height (mm): 7.6mm
Above PCB Height (mm): 3.1mm
Current (A): 3A DC
Mates With:
Circuits: 7
