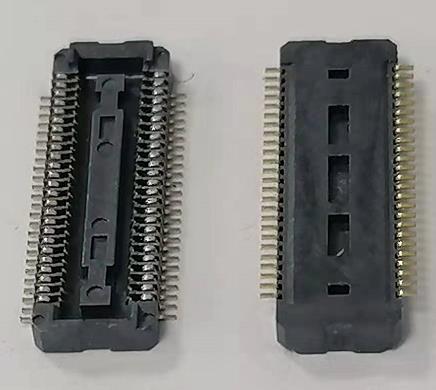

0.4mm PITCH 1.5mm H BTB FEMALE CONNECTOR
Electrical
Voltage: 50 Volts AC DC (per pin)
Current Rating: 0.5A(per pin)
Contact Resistance: 90 mΩ max
Dielectric Withstanding Voltage: 150 VAC Min.
Insulation Resistance: 100 MΩ min.
Operating Temp. : -55℃ ~ +85℃
Specification(Abbreviation)
Type: Plug
Pitch(mm): 0.40mm
PCB Mounting: SMT
Operation Direction: D/R S/T
Product Height (mm): 1.25mm
Mating Height (mm): 1.50mm
Mates With: BT0406H-XXXXX
Circuits: 30,50,80,100,120
