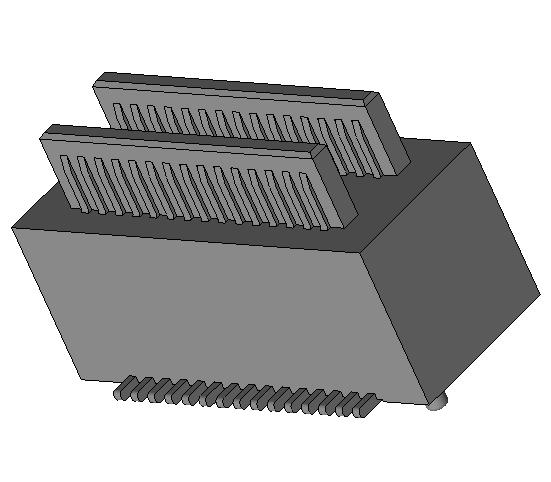

0.5mm pitch Double slot BTB PLUG height 7.0-8.5mm H Product H=5.90mm
Electrical
Voltage: 60 Volts DC (per pin)
Current Rating: 0.5A(per pin)
Contact Resistance: 20 mΩ max
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 800 MΩ min.
Operating Temp. : -55℃ ~ +85℃
Specification(Abbreviation)
Type: Plug
Pitch(mm): 0.50mm
PCB Mounting: SMT
Operation Direction: D/R S/T
Product Height (mm): 5.90mm
Mating Height (mm): 7.0~8.5mm
Mates With: BT0520H-XXXXX
Circuits: 30,40,80,100
