Electrical：

Voltage: 50Volts AC DC(per pin)

Current: 0.5A (per pin)

Contact Resistance: 20mΩ Max.

Dielectric Withstanding Voltage: 200V AC Min.

Insulation Resistance: 500 MΩ Min.

Operating Temp. : -25℃ ~ +85℃

Specification(Abbreviation)：

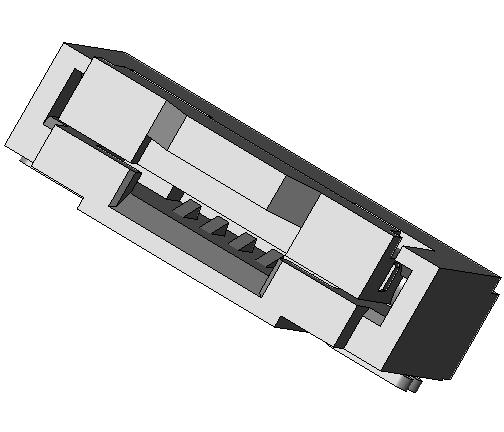

Family: Front Flip Easy-on

Pitch (mm): 0.5mm

PCB Mounting: SMT

Operation Direction: R/A

Product Height (mm): 2.09mm

CableType: normal

Contact Position: B/C

Cable Thickness(mm): 0.3±0.03

Circuits: 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60
