Electrical

Voltage: 30 Volts  AC,DC (per pin)

Current: 0.2A AC,DC (AWG#36)

             0.3A AC,DC (AWG#34)

Contact Resistance: 30 mΩ max.

Dielectric Withstanding Voltage: 200V AC Min.

Insulation Resistance: 100MΩ min.

Operating Temp. : -40℃ ~ +85℃

Specification(Abbreviation)

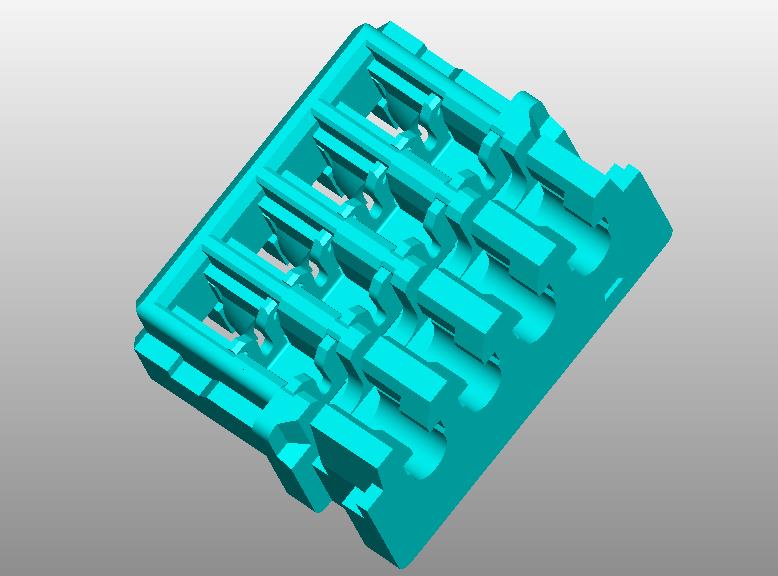

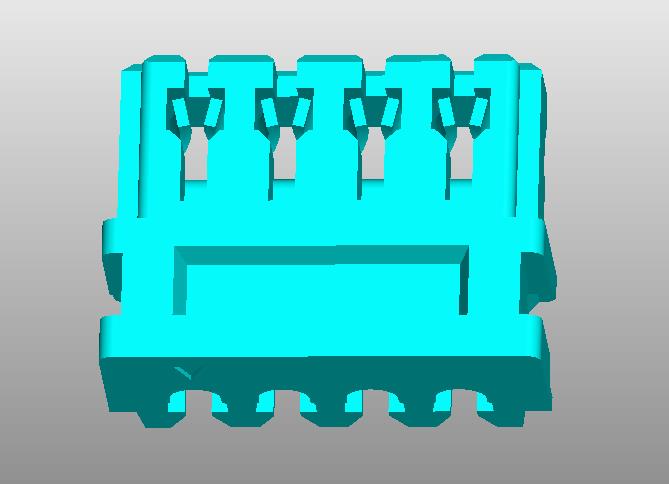

Family: IDC Female

Pitch (mm):0.6mm

PCB Mounting: SMT

Operation Direction: S/R R/A

Product Height (mm): 1.37mm

Current (A): AWG#34/0.2A；AWG#36/0.3A

Insulation O.D.: ∮0.29±0.02mm(AWG#36);∮0.32±0.02mm(AWG#34)

Mates With: WB0612H-XXXXX

Outer Lock: No

Circuits: 2,3,4,5,6,7,8,10,12,14,16
