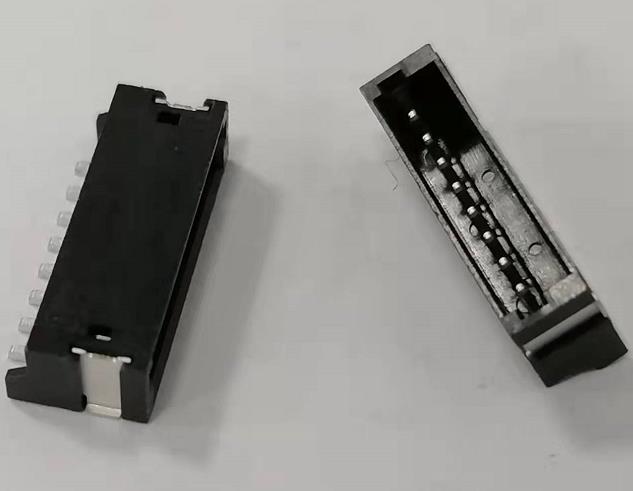

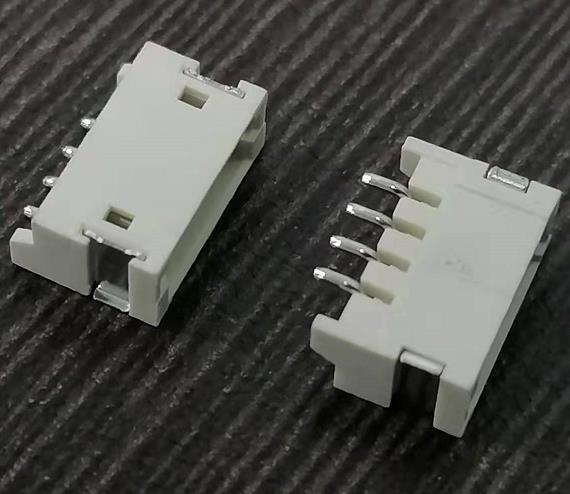

1.5mm Pitch WTB 3.70H SMT CONN
Electrical
Voltage: 50 Volts AC,DC (per pin)
Current: 3.0A AC,DC (AWG#26)
1.0A AC,DC (AWG#28)
1.0A AC,DC (AWG#30)
Contact Resistance: 40 mΩ max.
Dielectric Withstanding Voltage: 500V AC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -40℃ ~ +85℃
Specification(Abbreviation)
Family: Wafer
Pitch (mm):1.5mm
PCB Mounting:SMT
Operation Direction: S/R R/A
Product Height (mm): 3.7mm
Current (A):AWG#26/3A；AWG#28/1.0A；AWG#30/1.0A)
Insulation O.D.: ∮0.9mm MAX;
Mates With: Terminal:WB1506-TX;Housing:WB1506H-HXXXX
Circuits: 2,3,4,5,6,7,8,9,10,11,12,13,14,15,16
